Specialized expertise for special situations
Security in changing times
The naval defense segment is growing in the face of national security concerns. The Navy & Coast Guard segment has expanded in recent years in the face of national security concerns where nations of all continents are anxious to protect their maritime boundaries. At the same time, the rise in asymmetric threats, such as piracy and military confrontation in critical trade areas, has increased the desire to provide security for global seaborne trade.
Modern vessels fulfill an extremely broad and complex range of tasks. As long-term partners of the defense market, we know the requirements and constraints of each application and consult you with a state-of-the-art propulsion concept and supply everything from a single source.
MAN naval propulsion systems
The foundation of our success has always been and will always be innovation, quality, reliability of supply, and trustworthiness. MAN Energy Solutions is your preferred premium partner in the naval world – from fast patrol boats to large auxiliary ships, from offshore patrol vessels to full naval combatants.
In order to ensure full operational readiness of their fleets, no less than 60 navies rely on MAN engines. With our wide range of highly – efficient, reliable, and robust engines that cope with the latest shock demands, the lowest noise levels, and fundamental nuclear, biological, and chemical (NBC) requirements, we have the perfect solutions to match your needs.
If you focus on proven designs, the powerful MAN V28/33D STC naval propulsion engine and the compact MAN 175D GenSet are perfect choices.
Our exhaust-gas-cleaning systems such as SCR (selective catalytic reduction) minimize NOx emissions through perfect adjustment with the engine
When it comes to full integrated logistics support (ILS), as frequently requested by the world's navies, our experts can support you with their many years of experience and a customer-specific ILS package.
For a powerful response

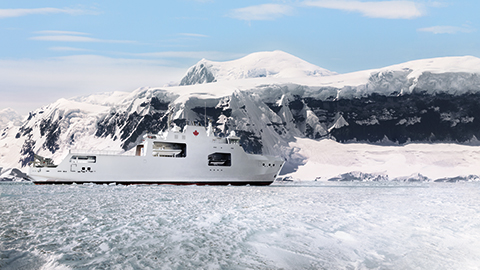

Offshore patrol vessels
Small and compact, but operating on the open sea, offshore patrol vessels take on a very broad range of missions that include search and rescue, maritime surveillance, environmental monitoring, and fishery protection.
While the engine load profile for a patrol boat has to be very flexible, especially in low-load areas, it also has to deliver a quick, high-power response, endurance, and faultless operation during any mission.
Therefore, our engines are specially designed to enable operation in patrolling mode as well as during sprints with maximum speed. What`s more, we offer you the highest level of flexibility for designing your vessel with solutions for both mechanical and hybrid electric propulsion.
Go to Four-Stroke propulsion engines

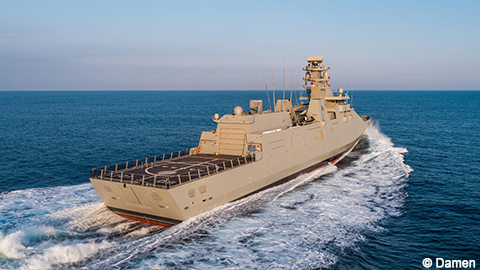

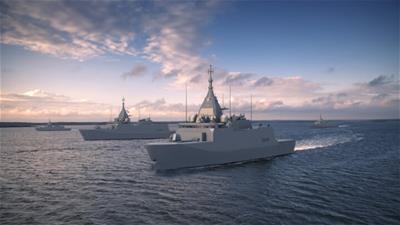

Corvettes, frigates, and destroyers depend on high-powered, efficient engines that won’t let their crews down or risk the success of their missions – whether on far-from-home deployments or fast escort operations.
Silent and swift
Naval combatant applications usually require high speed for fast escort operations, without toleration of any compromise on acoustic, thermal, and visual signatures. They also have to withstand shocks or even cope with the strictest structure and airborne noise requirements.
Our powerful and compact engines deliver this level of performance while ensuring maximum availability and outstanding specific fuel oil consumption (SFOC). Best-in-class life cycle costs are supported by our effective logistics and services organization across the globe.
Go to Four-Stroke propulsion engines
Go to Four-Stroke diesel electric propulsion
Amphibious and support ships
Naval amphibious and support ships transport troops and supplies over long distances. Non-military deployment can be just as challenging. In disaster relief operations, the ships can act as hospitals, crisis management units, communications centers or helicopter platforms.
Amphibious and support ships face great demands, including a long operational life. Worldwide logistic support missions can be long in range and duration. The propulsion systems must offer ultimate shock resistance, silent operation and low visual or infrared signatures. By offering reliable, high-power operation at low fuel consumption, our engines pass the test in terms of reliability and economy. What is more, our systems include powerful generating sets for integrated electric and hybrid plants, fulfilling all conceivable naval requirements to secure reliable, economical power generation and intelligent power distribution.
Go to Four-Stroke propulsion engines
Go to Four-Stroke diesel electric propulsion
Inshore and fast patrol crafts
Inshore and fast patrol crafts cover a multitude of coastguard duties, including search and rescue, firefighting, environmental surveillance, border control, customs and police duties. In a military context, they can be deployed as littoral combat crafts, protecting infrastructure or in special operations.
Ease of use
Due to frequent operations in in coastal waters, engines for inshore patrol craft usually have very high emission compliance standards (IMO Tier III). Performance, extremely fast load response and permanent availability are a matter of course.
The typically small crews on these boats have their own specialized duties, such as rescue, inspection, and combat. That means that simple engine operation and maintenance are essential design features of our solutions.
Optimized propulsion systems
More than an engine
MAN Energy Solutions has a strong track record in the engineering, integration and servicing of complete propulsion packages (including main engines, electric motors, variable frequency drives, gearboxes, propellers, and propulsion control systems) for navies and coastguards across the globe. We know what you expect: high propulsion performance and operational availability. In case of a hybrid propulsion solution with batteries, electric motors, a smart power management and an optimized drive control system is required, MAN consults you with a state of the art concept and supplies everything out of one hand.
Highly efficient propellers
Our propellers can be found on many types of ships – from small coastal cutters or supply and inspection vessels to larger, more powerful OPVs, command support vessels and frigates.
We offer propellers with a great variety of optimized design profiles for our four- and five-blade series (CPP / FPP), efficiently handling shaft powers up to 50 MW.
This impressive portfolio of products also includes a variety of shafting solutions including water-lubricated stern tube systems. Always customized propeller solutions, which can cater for shock impact and mission-critical conditions – contribute to forceful and energy-efficient operation with low hydro-acoustics and minimal environmental influence.
Benefits of a complete propulsion system
Together with our affiliate AKA, our specialist for hybrid propulsion systems, we can create intelligent solutions for the most complex propulsion needs of large ships.
MAN engines - Mission proven and ready for battle
RENK gearboxes - Navy design
MAN ALPHA propellers - Noise optimized and efficient
AKA hybrid systems - Smart energy management and storage
Achieve next level readiness with MAN Full ILS
Our aim is to provide you with absolute maximum reliability and readiness for your missions. With MAN Full ILS we take this goal far beyond the engine and equipment itself. Through in-depth information, manuals, as well as military-grade documentation, you can ensure unparalleled performance, while cutting operating time, costs and reducing complexity. All information is handed over with the purchase of your engine, so 100% of our focus can go to the mission on hand.
Repair & Maintenance
Achieve unique transparency over your technical needs and increase effectiveness through our advanced repair & maintenance insights and manuals.
- ILS plan specifies all deliverables and milestones
- Reliability Analysis (MTBF/MTTR calculation) and FMECA (Failure mode, effects and criticality analysis)
- Create a System Breakdown (Bill of Material)
- Concept for planned and unplanned maintenance
- Level of Repair Analysis
- Specification of the required spares and tools for each individual maintenance tasks
Knowledge & Training
To ensure successful maintenance, expertise must be available to the right personnel at the right time and in the right format. Through comprehensive databases, training manuals, and documentation we enable your crew to increase effectiveness and avoid technical errors.
- Logistic data for storage and transportation of spares and tools
- Storage of all created data in customer’s database according to the requested military standards
- Training program for on-board and base personnel
- Life Cycle Cost Analysis taking into consideration all ILS elements
- Delivery of drawings and data for NSN (NATO Stock Numbers) procurement
To fulfil the broad range of tasks on naval vessels, your crew requires highly specific information, customized to the equipment and situation. As long-term partners of the defense market, we know the requirements and constraints of each application. We offer customized documentation according to your respective military standard for:
- Operating instruction
- Work instruction
- Maintenance schedule
- Electronical database for customers maintenance plan system which includes maintenance- and repair instructions (OmegaPS)
- Spare parts catalogue and tool list: full system breakdown structure in electronic format
- Training plan
- FMECA and MTBF calculation
Your mechanical roadmap with Propulsion System Integration
MAN can offer consulting expertise to shipyards in the most specific and technical matters, and across all aspects of construction. We assist with selected technical challenges, as well as offer a single point of contact between Consulting, Engineering and Production. As such, we enable you to take on more complex constructions, while reducing coordination efforts, risks and costs, and increasing a ships’ life duration.
We assist you with laying the groundwork for successful construction and operation of all propulsion systems, taking into account all relevant parameters. Reducing construction errors with our services which include:
- Consulting on ship and propeller performance
- Reviewing documents and reports such as FAT reports, system diagrams, 3D models
- Creating special reports such as shock, strength, noise and vibration calculation, black out study, ...
- Preparation, moderation, and wrap-up of meetings
We provide a customized and extensive framework of baseline studies, specific recommendations, and simulations, which will increase development speed and reduce the need for testing. Engineering services include:
- Concept study for base line design
- Life cycle calculation
- Simulation of different operating modes
- Technical specifications and selection of equipment
- Layout of media systems, block diagrams and single line drawings
- Interface documents for mechanical, automation and electrical purposes
- Functional descriptions
- Merging supplier documents to a common standard
We assist with all aspects of the propulsion system’s implementation, merging all previous insights into one seamless configuration. Using flexible methods, highly specialized tasks may be outsourced to our experts in flexible time periods, cutting production costs and lowering risk of delay. Our services include:
- Positioning and foundation of the components
- Arrangement drawing with the original ship structure
- Managing necessary tools and auxiliary devices
- Assembly strategies and related working cards
- Providing on-site support
MAN PrimeServ protects your energy assets from day one
Whether you feed energy into the grid or satisfy a localized demand, on land or at sea, our technicians provide what you need – where and when you need it, ensuring the availability, flexibility, and profitability of your plant.
How you benefit:
- Fast, reliable and expert customer support
- Prompt delivery of OEM spare parts
- Bespoke O&M contracts
- Global service – 24 hours a day, 365 days a year
Ready for your next mission? Ready to master your next challenge even better?
Our global network of experienced engineers is eager to design the perfect-fit solution for you and your business. Start your engines now and reach out to us today.
