Tailored four-stroke GenSets
Full range of MAN four-stroke GenSets
Explore the possibilities and key-facts of our GenSets.
Always a good investment: Our four-stroke GenSets
The MAN 35/44DF CD engine is the perfect match for your GenSet demands, providing the highest power output, low emissions, a foundation for future fuels, and an attractive business case - either CAPEX or OPEX.
MAN L35/44 DF GenSet
The MAN L35/44DF offers high output, dual fuel flexibility, and Tier II and Tier III compliance. It's ideal for mechanical propulsion, electric propulsion as well as GenSet applications.
- 720 – 750 rpm
- 3,060 – 5,300 kW
- 2,953 – 5,115 kWe
The MAN L+V32/44CR GenSet is stetting new standards in efficient power generation. It offers unsurpassed operational efficiency and flexibility, high electrical power output, low fuel oil consumption, and reduced exhaust gas emissions.
MAN L+V32/40 GenSet
Supplied in variants from six to 18 cylinders, the MAN L+V32/40 GenSet has been produced more than 4,000 times and provides highly reliable power to large vessels in the world’s fleets.
- 720 – 750 rpm
- 3,000 – 9,000 kW
- 2,895 – 8,730 kWe
The dual fuel MAN L28/32DF is available for new buildings as well as for an economical retrofit solution. The dual fuel engines offer flexibility with economic and environmental advantages, especially as part of a complete power package.
MAN L27/38 GenSet
MAN L27/38 units are characterized by reliable HFO / Biofuel based GenSet power, delivered at the lowest possible accumulated costs during an entire lifecycle. The GenSet represents a safe investment for container vessels.
- 720 – 750 rpm
- 1,500 – 3,150 kW
- 1,440 – 3,025 kWe
MAN L27/38 Mk2 GenSet
MAN L27/38 Mk2 GenSets are designed for operational reliability together with long and safe overhaul intervals. They are a proven solution for a large range of merchant vessels.
- 720 – 900 rpm
- 1,980 – 3,690 kW
- 1,900 – 3,540 kWe
The Mk3 version of the L23/30H GenSet combines innovative technology with proven design principles to meet current and future requirements. With up to 200 kW per cylinder, it is engineered to cater for the power needs of most commercial ship types.
MAN L23/30H Mk2 GenSet
First introduced in the mid-60s, the MAN L23/30H has proven to be an extraordinarily reliable engine type with more than 12,000 units installed and has served as the de facto benchmark for the entire industry.
- 720 – 900 rpm
- 580 – 1,400 kW
- 550 – 1,330 kWe
The dual fuel MAN L23/30DF is available for new buildings as well as for an economical retrofit solution. The dual fuel engines offer flexibility with economic and environmental advantages, especially as part of a complete power package.
MAN L21/31 Mk 2 GenSets deliver reliable and HFO / Biofuel based auxiliary power.
They operate at the lowest possible accumulated costs during their entire life cycle and therefore represent a safe investment.
- 900 – 1,000 rmp
- 1,000 – 1,980 kW
- 950 - 1,880 kWe
This methanol-fueled MAN L21/31 GenSet is a compact and reliable power source designed to run on methanol, heavy fuel oil (HFO), and most biofuels.
With its outstanding load-step capabilities and extremely long time between overhauls (TBOs), it is ideal for many different applications. It is also a perfect match for the MAN B&W ME-LGIM methanol two-stroke engine.
- 900 – 1,000 rpm
- 1,000 – 1,980 kW
- 950 – 1,880 kWe
S.E.M.T. Pielstick PA6B GenSet
With more than 1,800 units produced, the PA6 family has been the choice for ships with challenging requirements. Now equipped with our proven SaCoSone safety and control system, the PA6B is continuing its success story for civil and military vessels.
- 900 – 1,000 rpm
- 4,200 – 7,400 kW
- 4,074 – 7,178 kWe

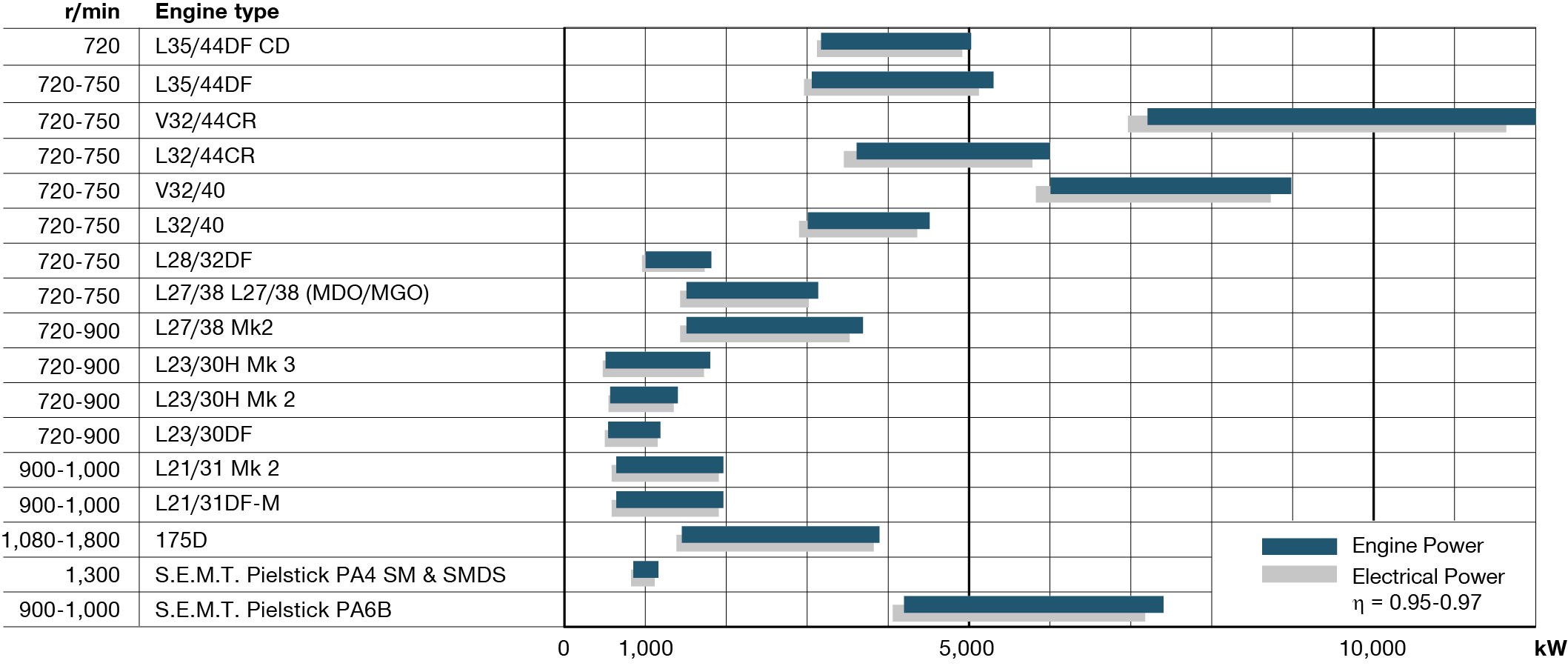

Medium- and high-speed GenSet output range
Establishing new benchmarks for the industry
The MAN Energy Solutions product development strategy is to design GenSet solutions that produce energy at the lowest possible cost per kW without compromising on quality. This strategy requires a resolution of the conflicts inherent between five key market requirements: Operation on the cheapest fuel, easiest possible daily maintenance procedures, longest safe intervals between overhauls, unlimited load patterns, and worldwide environmental regulations. Over many years, MAN Energy Solutions has achieved the right balance between these requirements by applying an innovative approach to engine and generator design. This approach has assured MAN GenSets a substantial global market share and the opportunity to set new standards in the world market.
MAN PrimeServ: Enjoy expert 24/7 service and support worldwide, 365 days a year
MAN PrimeServ is your perfect companion for all things relating to our excellent products. Our technicians are always available to answer questions, assist with troubleshooting, and get your facilities up and running in no time – wherever and whenever you need them.
How you benefit:
- Fast, reliable and expert customer support
- Prompt 24-hour OEM spare part delivery
- Individual O&M contracts
- Global service – 24 hours a day, 365 days a year
In need of a safe and economical solution for transporting high-value goods? Looking for highly reliable and efficient auxiliary power?
Our global network of experienced engineers is happy to design the perfect-fit solution for you and your business. Get in touch with us now.
